INSPECTION MACHINE

DESCRIPTION


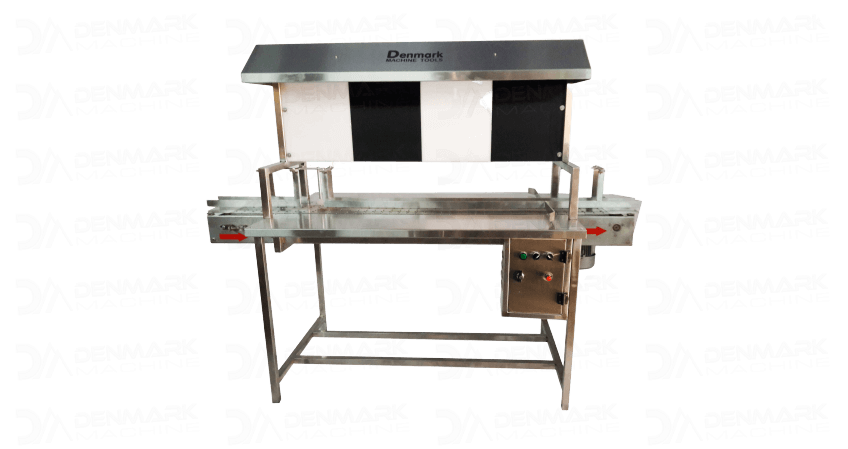

Inspection table is equipment consisting of a three - track conveyor with a hood with lighting arrangement and visual inspection background of alternate black & white color. Inspection table have stainless steel structure with moving S.S. slat chain. Structure made out of S.S. square pipe & supported on adjustable bolts.


OPERATION


The central conveyor belt brings the bottle from the capping machine conveyor. These bottles are automatically bifurcated on the two adjoining conveyor belts & further on the side tables for operators sitting on either side of the table. The operators in turn pick up the bottles & visually inspect the bottles in the alternate white & black background to check for any particles in the liquid filled, sealed & breakage of bottle. After inspection the bottles are placed in the central track, which is transfer for labeling.


TECHNICAL SPECIFICATION

Model
DVBI -100 DVBI - 150
Direction of Movement** Left to Right
Output*
Up to 100 Containers/minute Up to 150 Containers/minute
Number of Operator
Four (2x2, Two Side Seated) Six (3x2, Two Side Seated)
Power Characteristics**
0.5 HP/220 Volts /50 Hz. 0.5 HP/220 Volts /50 Hz.
Height of Conveyor** 860 mm to 910 mm
Machine Dimensinons**
1880 mm (L) x 700 mm (W)x 1525 mm (H) 2440 mm (L) x 700 mm (W)x 1525 mm (H)
Case Dimensions**
2150 mm (L) x 950 mm (W)x 1750 mm (H) 2750 mm (L) x 950 mm (W)x 1750 mm (H)
Gross Weight
425 Kgs. 525 Kgs.

INPUT SPECIFICATION
Container Size** Round Shape
Flat / Square
Ø 22 mm to Ø 100 mm***
Height 58 mm to 240 mm ***
(Height option for other bottle height available)
15 mm to 100 mm (Lenght)
Respectively 10 mm to 50 mm (Width)
Respectively Height 58 mm x 240 mm
(Height option for other bottle height available)
*Depends on operator, bottle size etc. ** We can supply as per customer requirements,.

SALIENT FEATURES

  • A/c frequency variable drive.
  • Direct gear drive.
  • Length can be made as per customer requirement.
  • PVC black & white board as per GMP norms.
  • UHMW self lubrication guide below chain.
  • SS elegantly matt finishing.
  • Adjustable height of conveyor belt, to align with
    other machine of the line
  • Self- alignment bearing for easy maintenance.
  • Rigid Vibration free Construction for trouble free
    performance.
OPTIONAL

  • Castor Wheel with lock
UTILITY REQUIREMENT

  • Electrical supply : Single Phase + Neutral + Earthing,
  • Electrical load : 0.5 KW
NOTE: Technical detail, specification & design subject to change whit out any prior notice.
Accessories shown in picture are not part of standard accessories.
