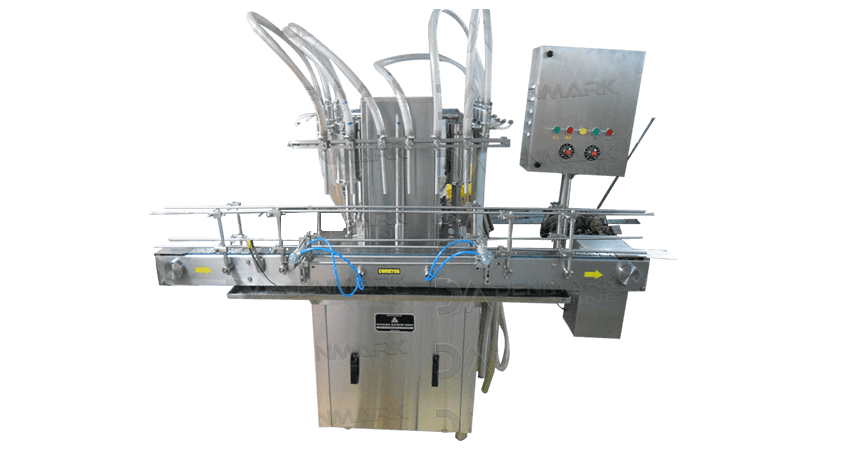

Automatic linear liquid bottle piston filling machine, which is made compact, Versatile and enclosed in stainless steel elegantly matt finish body this unit Works on volumetric principal and reciprocating self centering device.
Bottle stop mechanism automatically stop empty bottles on conveyor below filling Head, Reciprocating Nozzles goes down words according to filling does setting to fill empty bottles. To set different fill volume there is a dosing block in the machine and different fill size can set easily within short time. For Accurate filling setting machine has AC frequency drive for filling head and also AC Frequency drive for conveyor.
technical specification
| Model No | DALF - 150 | |
|---|---|---|
| Output / Hours | 3600-4600(Output will be Depending on Nature of Liquid & Fill size) | |
| Construction | SS 304 | |
| Electrical rating | Machine Main Motor 1HP and Conveyor Motor 0.25 HP | |
| Power Supply | 1 Phase / 230V | |
| Height of Conveyor | 860 mrn to 910 mm | |
| Overall Dimensions | 1830 mm (L) 1100 mm (W) 1450 mm (H) | |
sailent features
- Stainless steel 304 construction
- Variable A/c Frequency Drive
- Compatible to convert into 6 Head any time
- The unit is made compact & versatile
- Reciprocating filling nozzle with self-centering device
- Pneumatically operated bottle stopper OR Star wheel type stopper
- S.S. Slat conveyor
- No Container No Filling system
